TPE+Non-Woven Tela Composite Co-Extrusion-Waterstop Production Line

TPE+Non-Woven Tela Composite Co-Extrusion-Waterstop Production Line

Listahan ng kagamitan

1. SJ-55/30 Single-Screw Extruder (1 Unit)

2. Mataas at mas mababang mga aparato na hindi nagnanais (2 yunit bawat isa)

3. Die at screen changer (1 set)

4. 500mm l three-roll calender (1 unit)

5. System ng Roller Temperatura Control (1 Unit)

6. Paglamig ng bracket at sistema ng pag -trim (1 set)

7. Haul-Off (1 Unit)

8. Winder (1 unit)

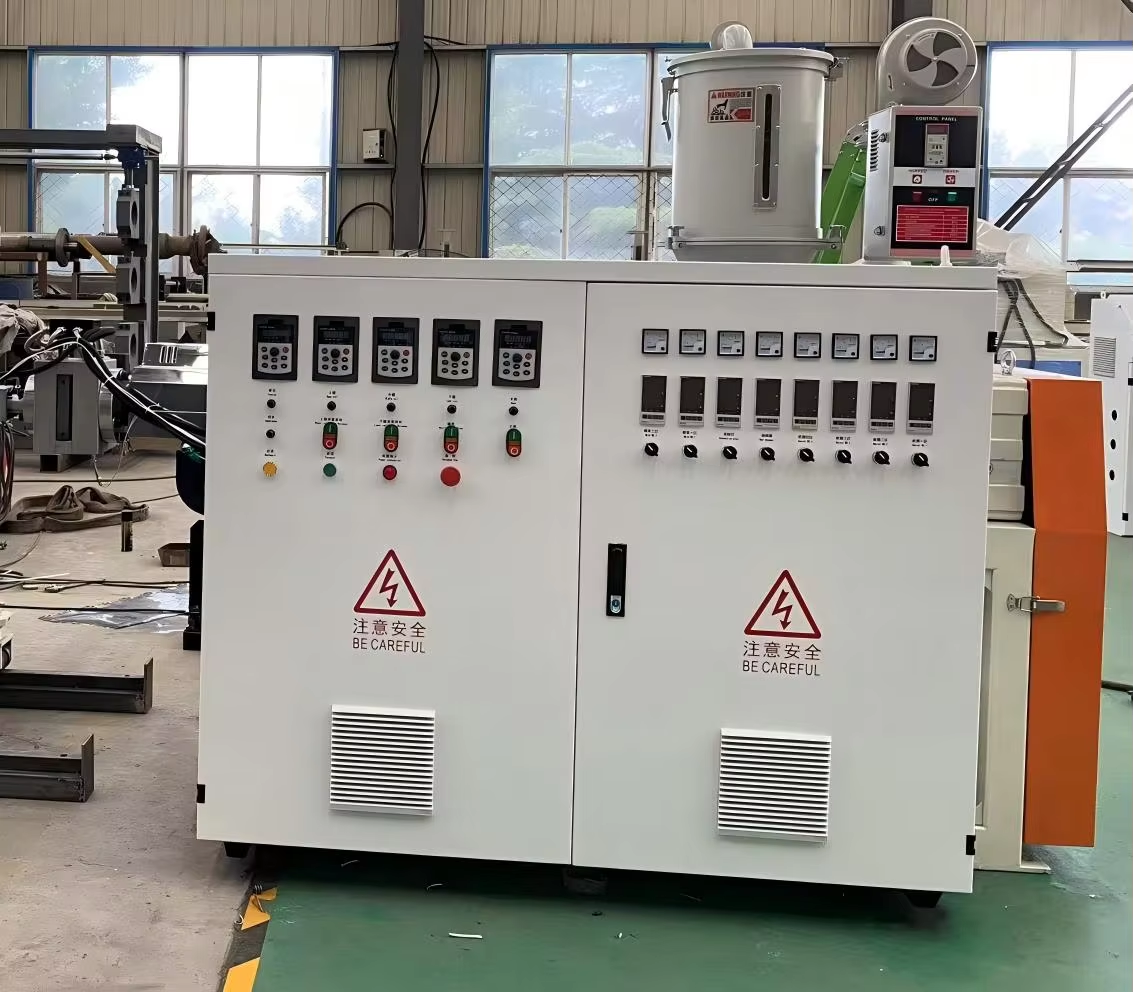

9. Kumpletuhin ang sistema ng kontrol ng elektrikal (1 set)

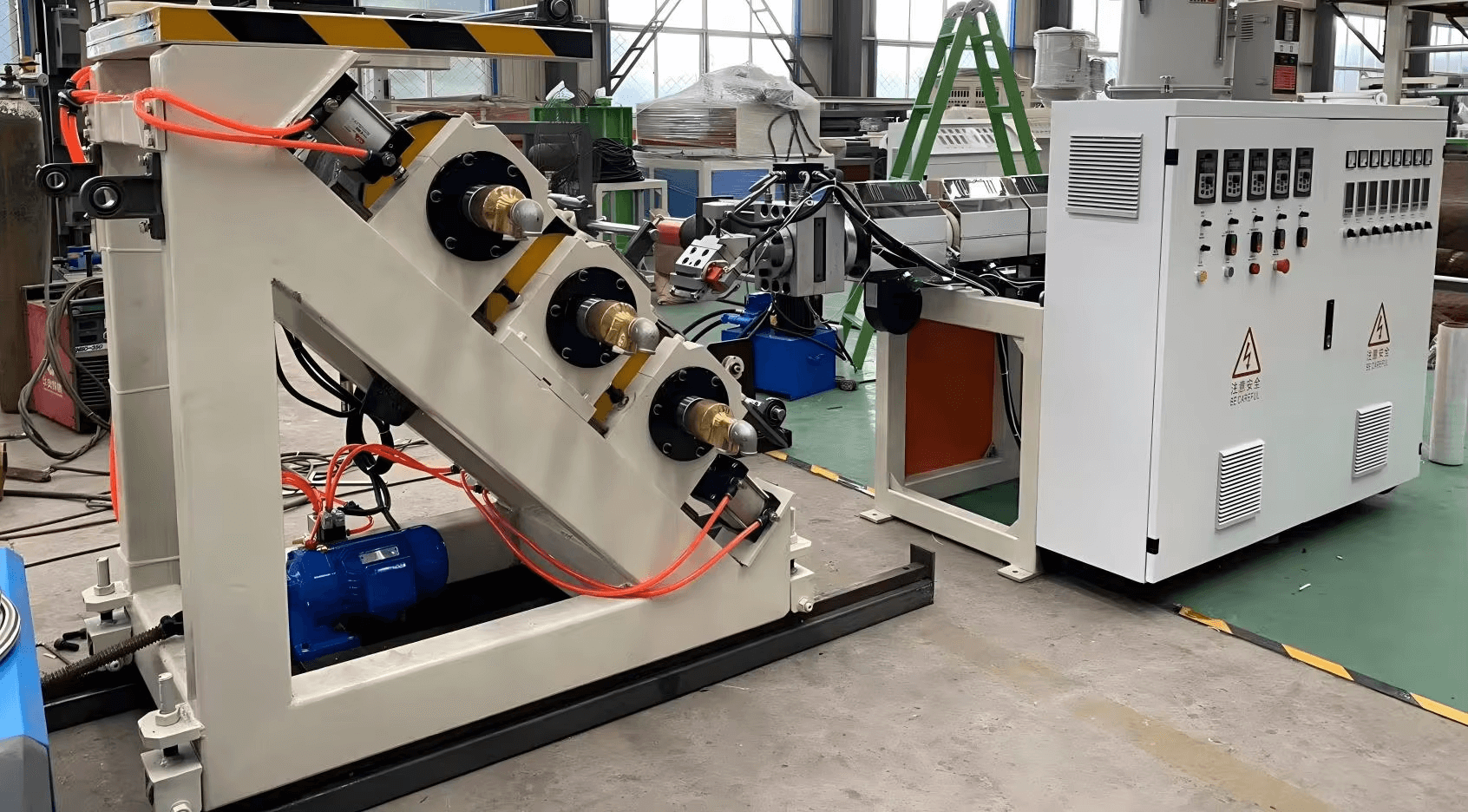

Equipment Display (Bahagi)

Screw, bariles, at kontrol sa temperatura

Materyal ng tornilyo: 38crmoal, nitrided steel

Hardness ng Screw: HV950

Materyal ng Barrel: Materyal na lumalaban sa barrel, nitrided steel

Barrel Hardness: HV1050

Diameter ng Screw: 55mm

L/D Ratio: 30/1

Pangunahing kapangyarihan ng motor: 15kw

Pangunahing kapangyarihan ng pag -init ng motor: 12kw

Pag -init ng Barrel: Cast aluminyo o ceramic

Kontrol ng temperatura: Awtomatikong, paglamig ng fan

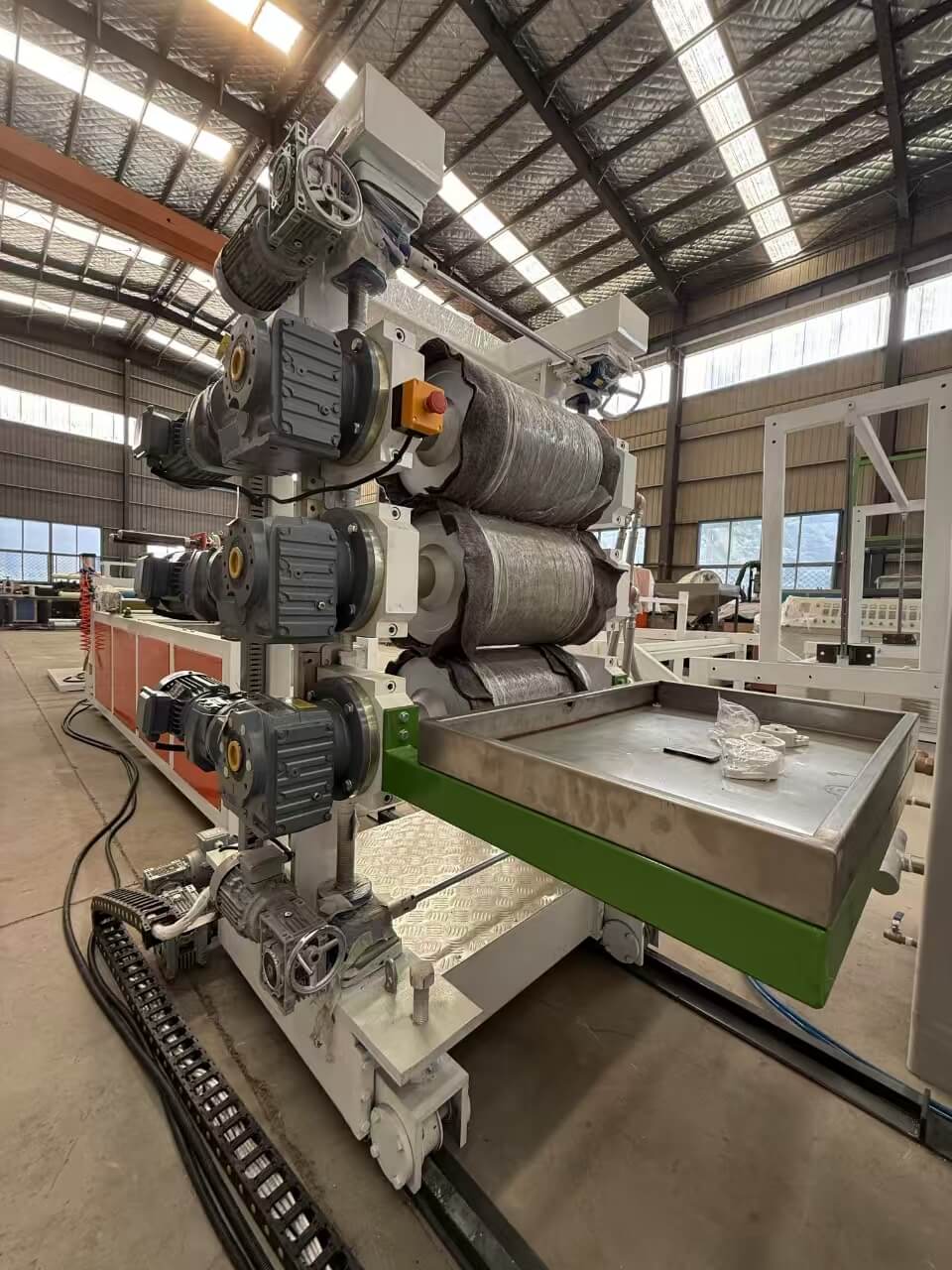

Kalendaryo

Diameter ng Roller: 300mm

Roller Epektibong Lapad: 400mm

Roller Material: 45 bakal

Istraktura ng Roller: Qingdao Roller Manufacturing o Xuzhou Saite Machinery's Special Multi-Channel Design

Coaxiality: ≤0.005mm

Tapos na ang Roller Surface: RA ≤0.016µm

Roller Surface Hardness: HRC58-62

Kapal ng kalmero ng Chromium: 0.08mm

Drive Reduction Gearbox: Redson o Congli

Kapangyarihan ng drive: 3 x 1.5kw

Kontrol ng bilis: Inverter ng Invt

Tatlong-Roller Gap Pagsasaayos: Pagsasaayos ng Cylinder, Kaligtasan Emergency Stop Switch, System Control System

Tatlong-roller na pagsasaayos: 45 ° ikiling

Three-roller wall panel: Integral steel plate welding

Three-roller spherical roller bearings: Harbin tindig o wafangdian tindig

Swivel Joint: Sino-Foreign Joint Venture

Traktor

Mga pagtutukoy: Ø160 x 400mm

Materyal: Nitrile goma roller

Drive: Reducer

Kapangyarihan: 1 x 1.1kw

Kontrol: Invt variable frequency drive

Paraan ng Clamping: Pneumatic

Naka -synchronize na may tatlong roller o nakapag -iisa

Winder

Magmaneho ng metalikang kuwintas

Uri: Dual-Station

Kontrol: Awtomatikong naayos na haba ng pagbibilang

Rewinding Diameter: 50mm

Pagtutukoy ng Tube ng Papel ng Papel: 2-pulgada na panlabas na dyaket

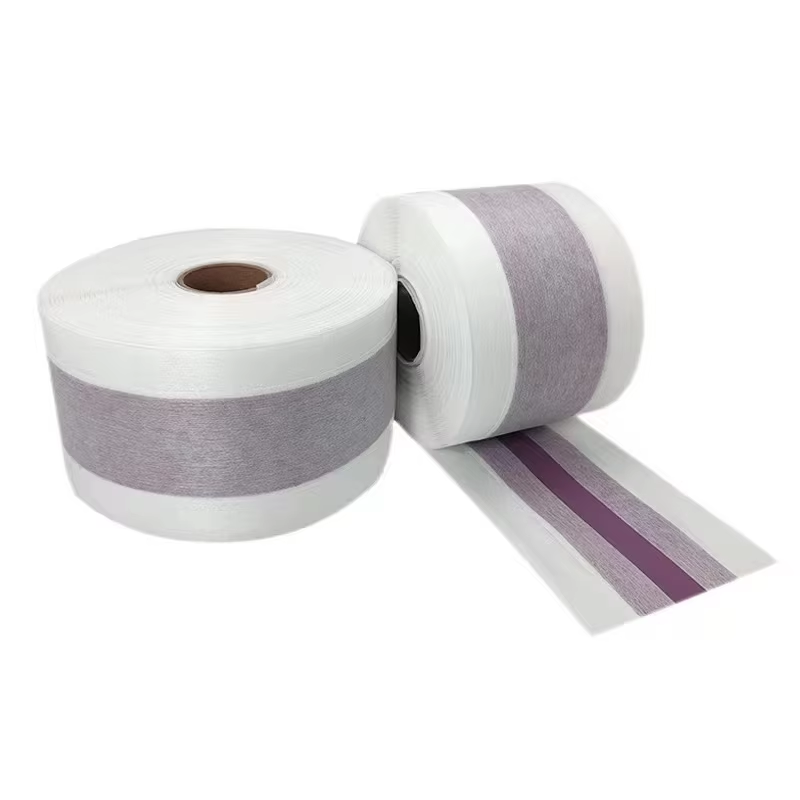

Tapos na display ng produkto
